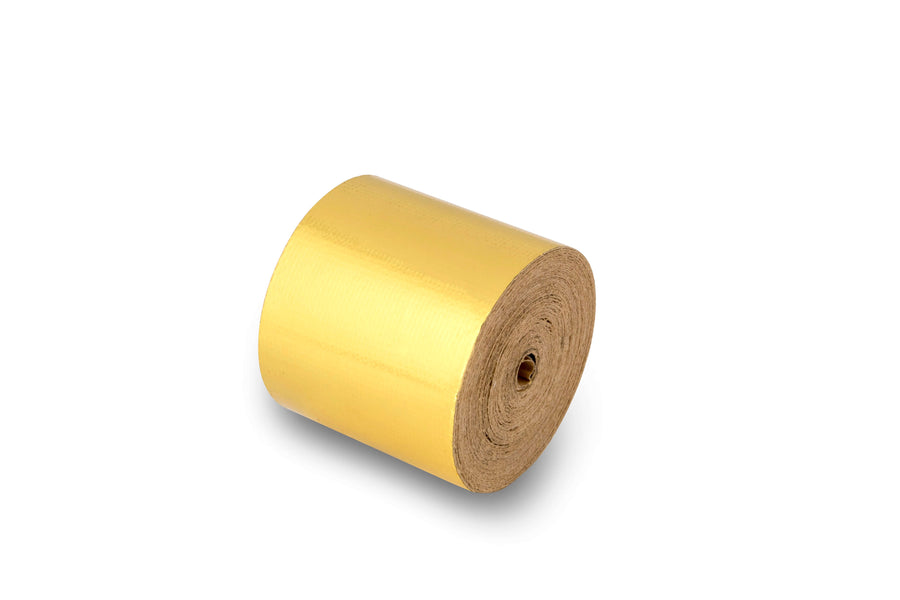

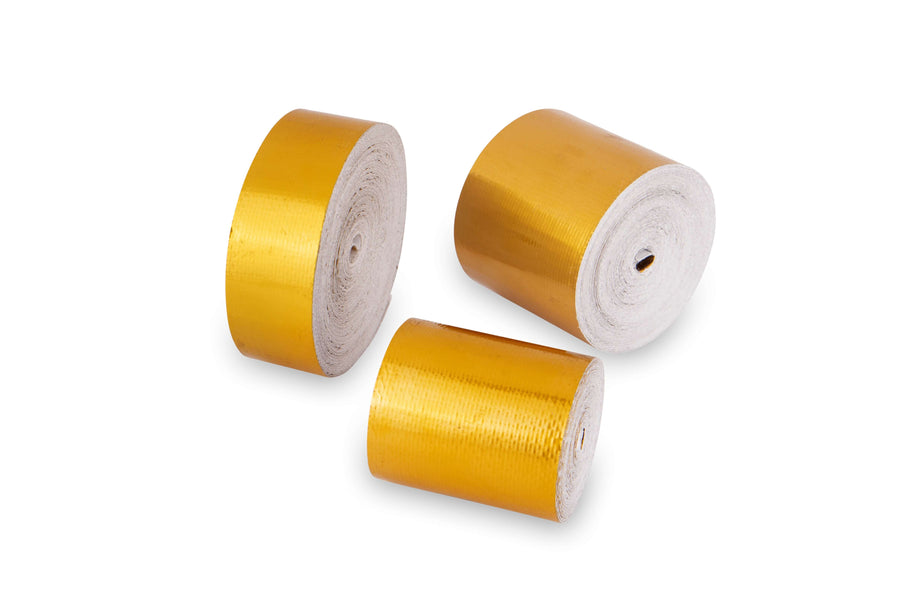

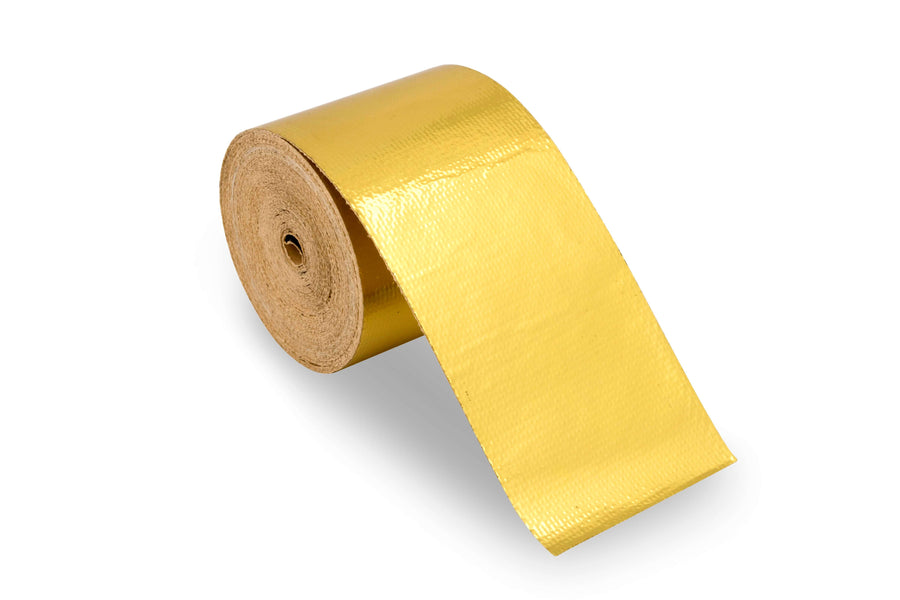

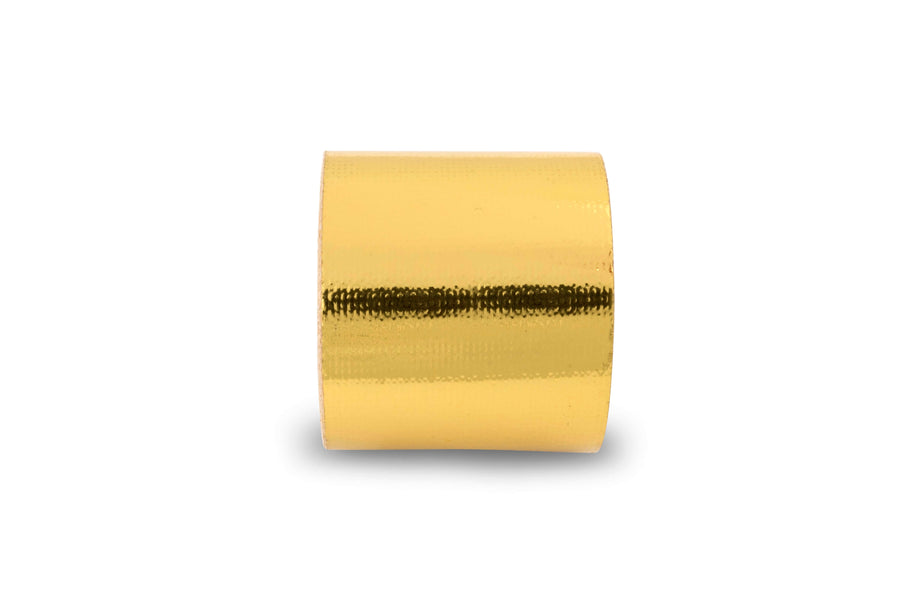

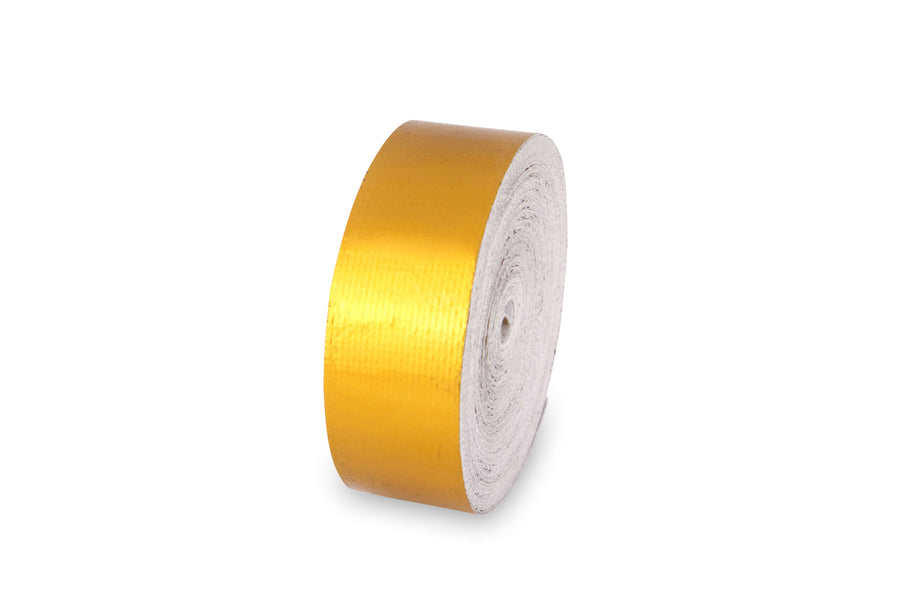

The Funk Motorsport Gold HeatTape has been produced for by popular demand to protect specifically bulkheads, firewalls, under bonnet (under hood), fuel tanks/fuel cells and other bodywork prone to extensive heat exposure.Our specially developed Gold Glass fibre tape can reflect away up to80% of all radiant heat whilst working in constant and ambient temperatures of up to 450°C.Sheets can provide a neat application over large areas of coverage. Gold Tape sheets also available.
When used correctly, the Gold Heat Wrap can be used to dramatically cool intake pipes and in turn increase induction performance due to the cooler airflow. Gold tape can also be used to protect vital components or bulkheads from heat sink from engines, exhaust pipes and other components. See our blog post to understand how our Gold HeatTape can work for you and see how it is used in many applications from Formula 1 to NASA spacecraft.
Fitment Instructions
Ensure the area for fitment is clean from all debris and is dry from any alcohol cleaner or detergent used.-Measure the length required on one strip.-Cut the strip from the roll and remove the backing of the entire strip.-For pipework, ensure the strips overlap on the side, which is not exposed.-On flat areas, or areas which are not curved apply the tape in a straight line. Start at one end and work along, applying even pressure across the strip to ensure no creases are applied.-Make sure there are no creases when applying a second strip.-Overlap the Gold tape by around 5-10mm when applying the second strip.-Cut the tape into thinner strips when we come to a tighter or more complex areas. 10mm is optimal for very thin strips.-Continue this process until the area is complete.
Common Applications Include
- Induction systems
- Bulkheads
- Fuel cells
- Exhaust tunnels
Continuous Temperature handling: 450 Deg C
Can reflect away up to 80% of radiant heat.
